cheap chinese mini excavator 1 ton micro small excavator with kubota engine and ce certificate and rubber tracks-China Small Excavator Factory

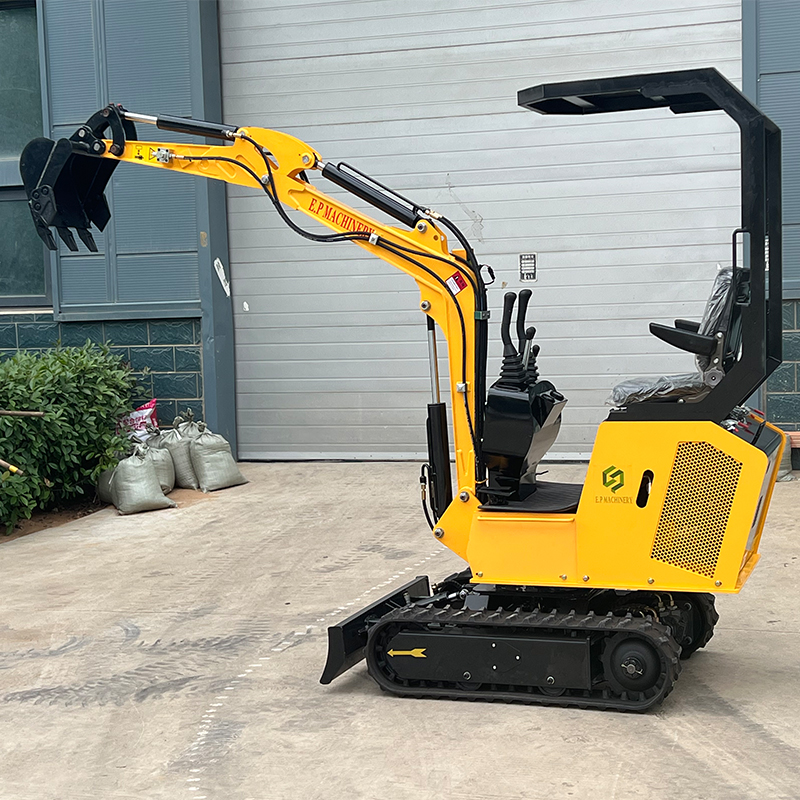

E.P good quality 1.0 ton mini Excavator garden digging machine MY10A ce detail

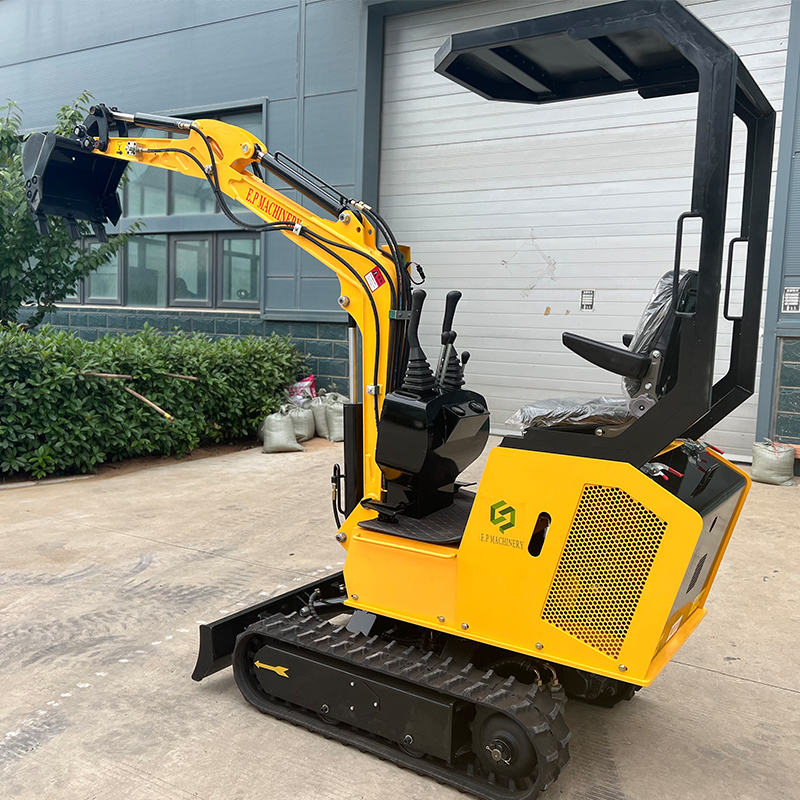

E.P 1ton mini Excavator garden digging machine MY10A with mini excavator accessories

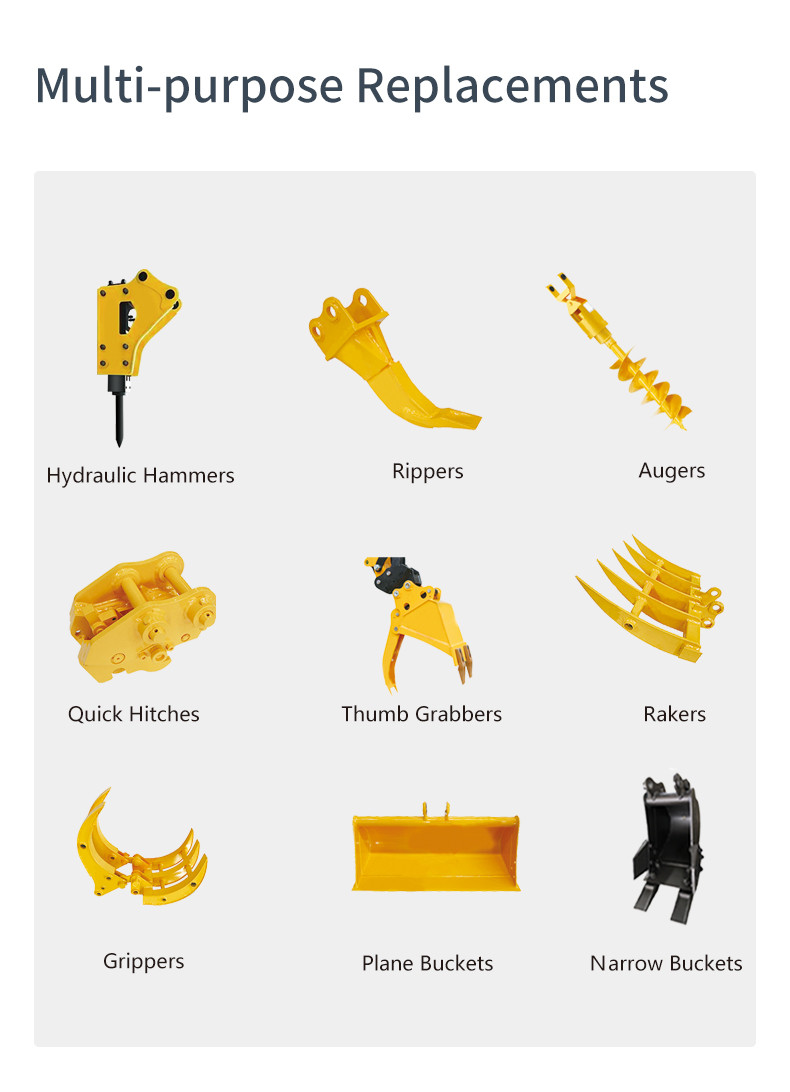

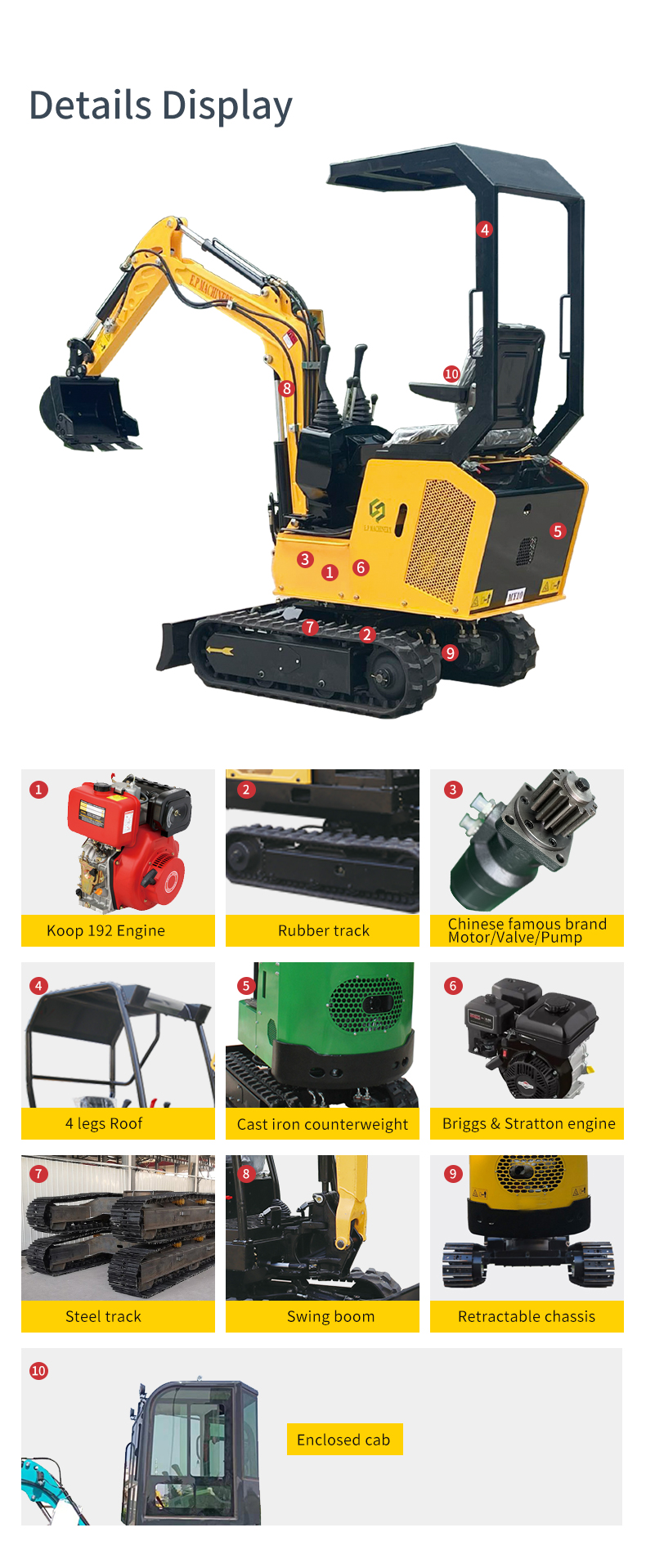

Display of the main accessories of E.P1ton mini excavator MY10A and what are the standard and optional configurations of a 1-ton small excavator

Company profile of E.P Machinery Manufacturing Company, the Chinese manufacturer of E.P1ton mini excavators

Applications of E.P 1ton mini excavator in daily life, such as trenching, leveling, etc.

E.P 1ton mini excavator displayed at exhibitions and packaged for shipment to customers around the world

Bank	E.P	Model	MY10A
Engine	Koop 192 Engine/Briggs & Stratton engine	Track	Rubber track/Steel track
Swing boom	Optional	Retractable chassis	Optional
Cast iron counterweight	YES	Enclosed cab	Optional

dynamical system

Briggs & Stratton Engine

Briggs & Stratton engines produce strong power, low fuel consumption, good environmental protection, long service life and easy maintenance.

Koop 192 Engine

Strong power, fuel economy, high reliability, environmental protection, energy-saving, and wide adaptability, it is an important component of the MY10A small excavator

hydraulic system

Equipped with a well-known brand pump valve system, it has high reliability, low pressure loss, and smooth composite action

Selling Points, Advantages of E.P High Quality 1t Mini Excavator Garden Excavator MY10A

E.P good quality 1Ton mini digger garden digging machine MY10A mini excavator, also known as compact excavators or mini diggers, are versatile machines designed for various construction, landscaping, and utility tasks. Their compact size and maneuverability make them suitable for working in tight spaces.

Selling Points of 1 Ton Mini Excavator

Chinese 1 ton small excavator boom swing demonstration

The range of the deflectable working device is 625mm to the left and 400mm to the right. Both sides can easily dig to the outer edge of the track, and can work in narrow spaces with limited space such as walls and corners

Demonstration of arm swing function of China's 1 ton small excavator

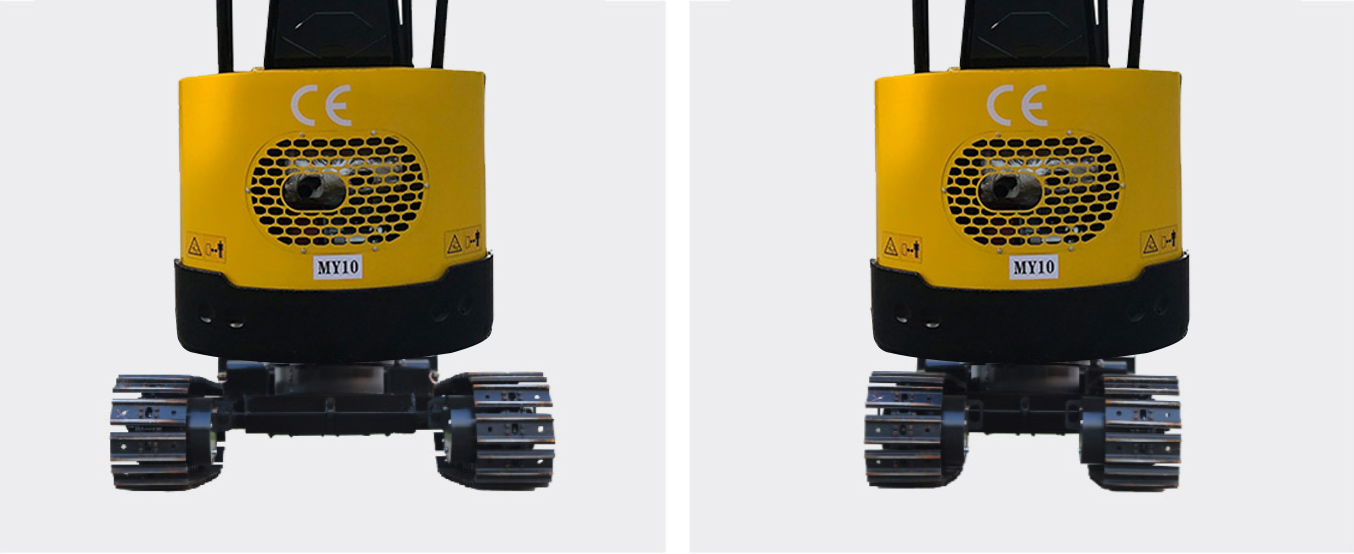

High quality 1 ton mini excavator chassis telescopic demonstration

The adjustable width range of the retractable walking frame is 980mm~1350mm, which improves the stability of the entire machine and meets various working conditions.

Rotating bulldozer

The rotary plug-in bulldozer ensures passability, making it easy for the excavator to pass through less than 1m of working space and improving work efficiency.

Mini excavators find applications in a variety of industries due to their compact size, versatility, and ability to navigate in confined spaces. Here are some common applications of mini excavators:
Landscaping and Ground Maintenance, Working in confined urban construction sites, Excavating in backyards and small lots,Installing or repairing septic systems,Creating ditches and drainage channels alongside roads etc

What is the application of mini excavator

Various configuration parameters of 1.0T mini excavator

Performance Parameter	Unit	Specification
Rated Power	HP	12
Bucket Capacity	M³	0.025
Operation Weight	KG	1000
Engine Model		Koop 192F
Bucket Width	MM	400
Pump Type		Single Gear Pump
Travel Speed	KM/H	1.5
Working Range	Unit	SPecification
Max Digging Height	MM	2640
Max Digging Depth	MM	1640
Max Vertical Digging Height	MM	1375
Max Dumping Height	MM	2000
Max Digging Radius	MM	2890
Min Radius Of Rotation	MM	1290
Max Lifting Height Of Dozer Blade	MM	180
Max Digging Depth Of Dozer Blade	MM	195
Dimensions	Unit	Specification
Overall Dimensions	MM	22109202220
Track Length	MM	1215
Track Width	MM	180
Track Height	MM	320
Platform Ground Clearance	MM	405
Platform Rear Turning Radius	MM	784
Chassis Width	MM	930
Chassis Ground Clearance	MM	140

Due to the continuous updating and progress of technology, any differences in technical parameters and configurations between the actual product and the actual product shall be subject to the actual product delivered; Additionally, the machine in the picture may include additional equipment.

Overall weight	bucket capacity	power
1000kg	0.025m³	12HP
